Stormtrooper Armor Model Technical Plans

Thermal Detonator

The thermal detonator model can actually be created using some plumbing parts found at any Home Depot? I actually used that as my starting point. I used PVC and some end caps as models for my Vacuforming process.





Dimensions:

Length: 18 cm.
Width: 7.5 cm.
Height: 7.5 cm.

Sculpting Material:

PVC, Bondo, MDF

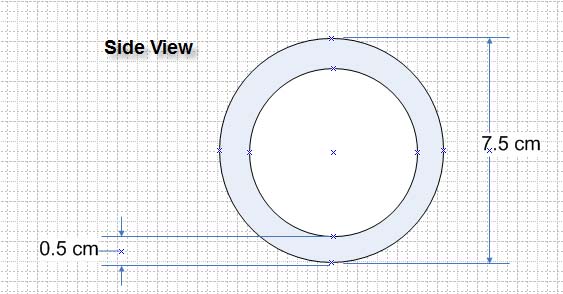

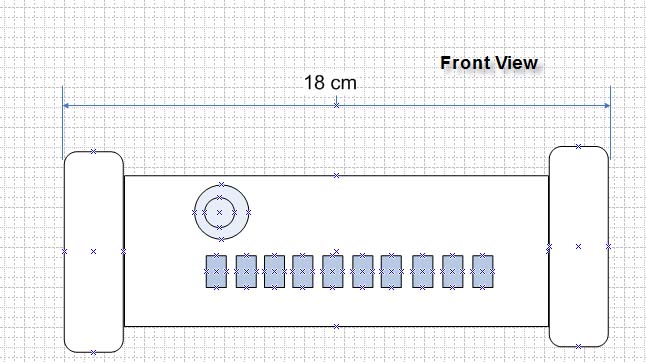

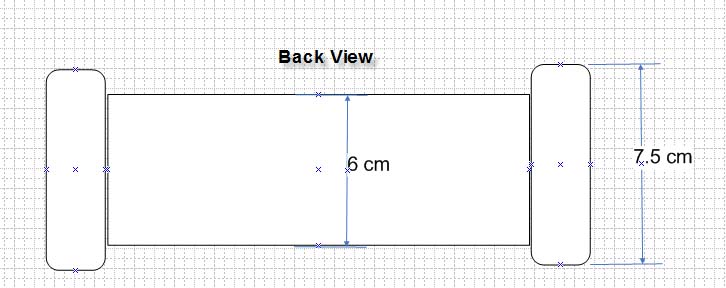

Technical Diagrams:













Special Sculpting Techniques: I started with a PVC Pipe with some end caps. I added the detai on the front by gluing some MDF accent pieces.
